1001 - Bumper And Fascia

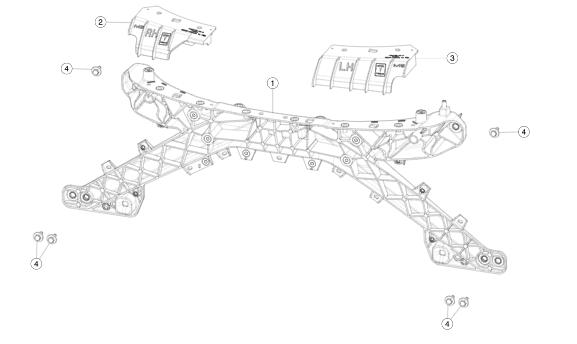

Front Bumper Carrier
# PART PART NUMBER 1 PART NUMBER 2 QUANTITY
1 COMP, FR END CARRIER, M3 1110240-00-B 111024000B 1
2 REINF - FASCIA FRT CTR UPR TO FEM RH, M3 1084170-00-B 108417000B 1
3 REINF - FASCIA FRT CTR UPR TO FEM LH, M3 1084169-00-B 108416900B 1
4 SEMS FL HX M8x23 5 109 G1009 PTC 1063260-00-C 106326000C 6

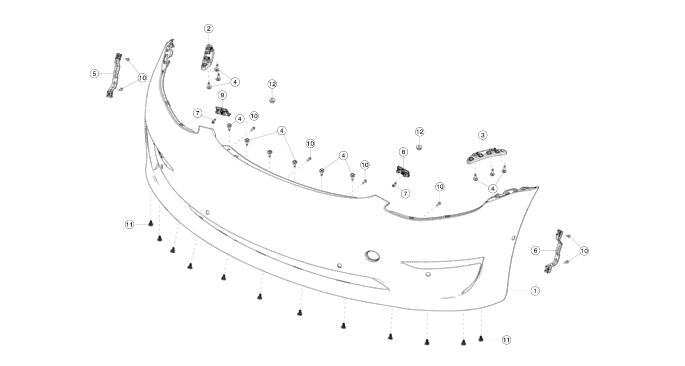

Front Bumper Fascia
# PART PART NUMBER 1 PART NUMBER 2 QUANTITY
1 M3 FRONT FASCIA UNPAINTED SVC 1084168-S0-E 1084168S0E 1
1 M3 FR FASCIA SVC, SOLID BLACK-PBSB 1084168-S1-E 1084168S1E 1
1 M3 FR FASCIA SVC, RED MULTI-COAT-PPMR 1084168-S2-E 1084168S2E 1
1 M3 FR FASCIA SVC,PEARL WHITE MULTI-COAT-PPSW 1084168-S3-E 1084168S3E 1
1 M3 FR FASCIA SVC, MIDNIGHT SILVER METALLIC-PMNG 1084168-S4-E 1084168S4E 1
1 M3 FR FASCIA SVC,DEEP BLUE METALLIC-PPSB 1084168-S5-E 1084168S5E 1
1 M3 FR FASCIA SVC, SAN SIMEON SILVER -PMSS 1084168-S6-E 1084168S6E 1
2 BRACKET - FASCIA SIDE TO FDR RH, M3 1084182-00-E 108418200E 1
3 BRACKET - FASCIA SIDE TO FDR LH, M3 1084181-00-E 108418100E 1
4 BOLT&WSHR,HX,M6x25,STL[9.8],ZNFL,CON,MAT 1031683-00-B 103168300B 12
5 Bracket - Frt Whlhse Lnr Stiffnr RH, M3 1104541-00-B 110454100B 1
6 Bracket - Frt Whlhse Lnr Stiffnr LH, M3 1104540-00-B 110454000B 1
7 SCR ST WSHR M5 X 20 ZnNi 1128951-00-B 112895100B 2
8 BRKT - FASCIA FRT CTR TO FDR LH, M3 1084171-00-F 108417100F 1
9 BRACKET - FASCIA FRT CTR TO FDR RH, M3 1084172-00-F 108417200F 1
10 SCR ST WSHR M5 X 20 ZnNi 1012809-00-A 101280900A 8
11 RVT PUSH-PULL 8X18X20.0 1006521-00-A 100652100A 12
12 NUT HF M6-1.00X18 (ZnAl) - Horn fastener 1006538-00-A 100653800A 2
Front Energy Absorber
# PART PART NUMBER 1 PART NUMBER 2 QUANTITY
1 M3S ASY, FR BUMPER BEAM - EXTRUSION 1104667-99-J 110466799J 1
2 M3S BUMPER BEAM FOAM 1104669-00-F 110466900F 1
3 ASY, ANKLE CATCHER, M3 1084894-00-B 108489400B 1
4 M3 ASY, CRUSH CAN, FR, RH 1088149-00-F 108814900F 1
5 M3 ASY, CRUSH CAN, FR, LH 1088148-00-F 108814800F 1
6 BOLT,HF,M10x130,STL[109],ZNFL,MAT 1446114-00-B 144611400B 4
7 BOLT,HF,M10-1.5x150,[149],ZNNI 1120775-00-A 112077500A 8
8 CRUSH CAN ASSY, FR SUBF 1109193-00-C 110919300C 2
9 BOLT, HF, M10x1.5x75.75, STL[109], ZN 1135014-00-A 113501400A 4
10 M3S BUMPER DOUBLE SIDED TAPE 1455921-00-A 145592100A 1

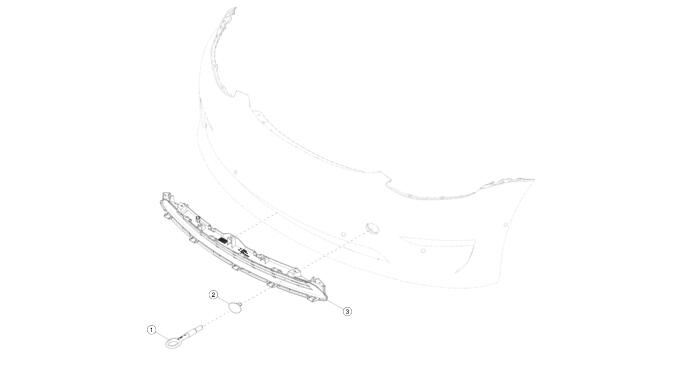

Front Grille And Applique
1 TOW HOOK 1077570-00-D 107757000D 1
2 COVER - TOW HOOK FRT FASCIA, M3 1084173-00-E 108417300E 1
2 COVER - TOW HOOK FRT FASCIA, M3 1460701-00-B 146070100B 1
3 GRILLE ASSEMBLY, FRONT FASCIA LOWER, M3 1085927-00-C 108592700C 1

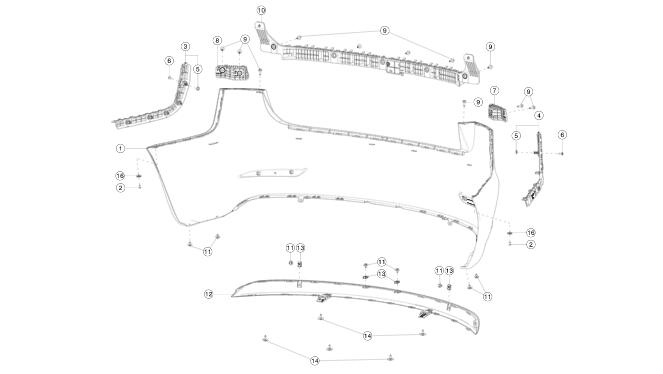

Rear Bumper Fascia
# PART PART NUMBER 1 PART NUMBER 2 QUANTITY
1 M3 REAR FASCIA UNPAINTED SVC 1108905-S0-A 1108905S0A 1
1 M3 RR FASCIA SVC, SOLID BLACK-PBSB 1108905-S1-A 1108905S1A 1
1 M3 RR FASCIA SVC, RED MULTI-COAT-PPMR 1108905-S2-A 1108905S2A 1
1 M3 RR FASCIA SVC, PEARL WHITE MULTI-COAT-PPSW 1108905-S3-A 1108905S3A 1
1 M3 RR FASCIA SVC, MIDNIGHT SILVER METALLIC-PMNG 1108905-S4-A 1108905S4A 1
1 M3 RR FASCIA SVC,DEEP BLUE METALLIC-PPSB 1108905-S5-A 1108905S5A 1
2 SCREW TORX M5 x 12 TRUSS HEAD (T25) 1011784-00-B 101178400B 2
3 M3 Rr Wing Bracket Assy RH 1083989-00-J 108398900J 1
4 M3 Rr Wing Bracket Assy LH 1083988-00-J 108398800J 1
5 SEAL, WING BRKT, RR FASCIA 1008274-00-B 100827400B 10
6 SCREW,HW,60x20,STL,ZNNI,R POINT 1452284-00-A 145228400A 6
7 MODEL 3, TAIL LAMP BRKT, LH 1083992-00-E 108399200E 1
8 MODEL 3, TAIL LAMP BRKT, RH 1083993-00-E 108399300E 1
9 BOLT HF M6X18 PC88 MAT 1006529-00-A 100652900A 9
10 M3, Brkt, Rr Center, Assy 1121191-00-E 112119100E 1
11 BOLT AND WSHR,M6x12,STL[8.8],PC,ZNFL 1060685-00-B 106068500B 8
12 Model 3, Rr Fascia, Lower, Assy 1103035-00-D 110303500D 1
13 J-NUT M6 0.5-3.0 MULTITHREAD 1013802-00-B 101380200B 4
14 SEMS,[FL],HX,M6x18,[88],G1009[B],MAT,ADH 1484170-00-A 148417000A 4
16 U-NUT,M5,2 MM GRIP,STL,ZNFL 1108798-00-A 110879800A 2
Rear Energy Absorber
# PART PART NUMBER 1 PART NUMBER 2 QUANTITY
1 M3 ASY RR BUMPER BEAM - EXTRUSION 1530484-99-B 153048499B 1
2 NUT HF M10 PC10 1047337-00-A 104733700A 8
